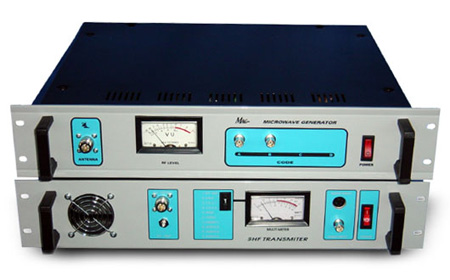

MAG-141G Ku Band 14.0 - 14.5 GHz, 1W
| AUDIO PERFORMANCE |
| Capacity: | Up to 4 channels |
| Frequency: | CCIR 7.020 - 7.500 - 8.065 - 8.590 MHz
FCC 6.200 - 6.800 - 7.500 - 8.300 MHz |
| Deviation: | 200 kHz p.p. single or non adjacent dual channels
100 kHz p.p. multi-channels
75 kHz emphasized |
| S/N Ratio: | > 65 dB (100 kHz peak deviation) |
| Distortion: | < 0.5% at 1 kHz) |
| In/Out audio level: | 0,7Vpp (600 Ohm) |
| |
| TRANSMITTER |
| Frequency range: | 14000-14500 MHZ |
| Power output: | 1 watt 30dbm/50R |
| Frequency stability: | 100 ppm or better (synthesis) |
| IF input: | S band 2000-2100 MHZ |
| Selectable channels: | PLL 6 MHZ step |
| |
| RECEIVER |
| Type: | Double down conversion |
| I.F. bandwidth: | 27 MHz |
| Dynamic range: | > 50 dB |
| Noise figure: | < 7 dB max. |
| 1st I.F. frequency: | 1500-2000 MHZ |
| 2nd I.F. frequency: | 480 MHZ |
| |
| GENERAL |
| System capacity: | up to 4 audio channels |
| System deviation: | 20Mhz. |
| Operating temperature: | From -10°C to +50°C |
| Main supply: | 220 V AC ± 10% (24 V DC OPTIONAL) |
|
|
|
|
