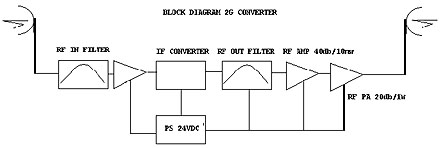

SHF CONVERTER Αναμεταδότης ψηφιακού Radio-Link
| RF INPUT |
| Frequency range: | 1,8 - 2,0 GHZ |
| Input level: | -70 to -30 dbm |
| Input impedance: | 50R |
| Image/Frequency rejection: | >45 db |
| IF Frequency: | 480 MHZ |
| IF Bandwidth: | 27 MHZ |
| |
| RF OUTPUT |
| Frequency range: | 1,8 - 2,0 GHZ |
| Output level: | +30 dbm 1watt |
| Output impedance: | 50R |
| Image/Frequency rejection: | -50 db |
| IF Frequency: | 480 MHZ |
| IF Bandwidth: | 27 MHZ |
| |
| GENERAL |
| Frequency stability: | 100 ppm or better (synthesis) |
| Modulation: | FM |
| Selectable channels: | PLL 1MHZ step |
| IF frequency: | 480 MHZ (70 MHz OPTIONAL) |
| RF Test output: | -40db SMA (F) |
| RF Test input: | +20db SMA (F) |
| IF I/O return loss: | > 24 dB |
| Input / output conector: | N type (F) |
| Operating temperature: | From -10°C to +50°C |
| Main supply: | 220 V AC ± 10% (24 V DC OPTIONAL) |
| |
|
|
|
|
