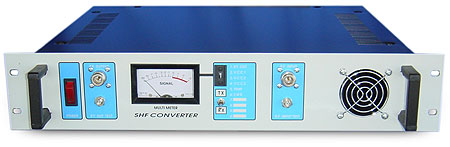

RADIO LINK LINEAR 50W 1,7-1,9 Ghz
| RF INPUT |
| Frequency range: | 1,7 - 1,9 GHZ |
| Input level: | +30 dbm / 1 watt |
| Input Return Loss: | -16db |
| Input impedance: | 50R |
| |
| RF OUTPUT |
| Frequency range: | 1,7 - 1,9 GHZ |
| Power Out (@1dB compression): | +47 dbm / 50 watt |
| Output Return Loss: | -18db |
| Output impedance: | 50R |
| |
| GENERAL |
| RF Test output: | -40db SMA (F) |
| Input / output conector: | N type (F) |
| Operating temperature: | From -10°C to +50°C |
| Main supply: | 220 V AC ± 10% (24 V DC OPTIONAL) |
| |
|
|
|
|
