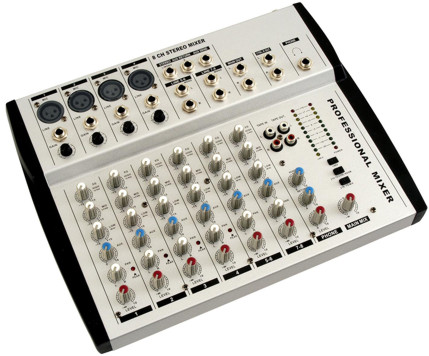

8 CH AUDIO MIXER
48V Phantom Power 2 Stereo Input Ultra Low Noise 8ch Audio Mixer
Product Features:
4 Mono Input Channels with gold plated XLRs and balance line inputs
Ultra-low noise discrete Mic Preamps with +48 V Phantom Power
2 Stereo input channels with balanced TRS jacks
4 additional multifunctional stereo Line inputs
Extremely high headroom-offering more dynaminc range
Balanced inputs for highest signal integrity
Ultra-musical 3-band EQ on all channels
Peak LEDS all Mono Channels
1 Aux Send per channel for external effects and monitoring
2-track inputs assignable to master Mix, control room/headphone output
Highly accurate 10 segment Bargraph meters
Rugged design power supply ensure superior signal integrity
Gross weight - 4.5 kg
Specifications:
Mono Input
MIC Input: Electronically Balanced, Discrete Input Configuration
Band Width: 10Hz~60KHz +/-3db
Distortion (THD & N): 0.01% at +4dbu, 1KHz, Band Width 80KHz
MIC E.I.N. (22Hz-22KHz)
-129.5 dbu, 150 Ohm Source
-117.3 dbqp, 150 Ohm Source
-132.0 dbu, Input Shorted
-122.0 dbqp, Input Shorted
Gain Range: +10db~+60db
Ling Input: Electronically Balanced
Band Width: 10Hz~60KHz +/-3db
Line Level Range: +10dbu~-40dbu
Equalization
HI Shelving: 12KHz +/-15db
MID Range: 2.5KHz +/-15db
LO Shelving: 80HZ +/-15db
Stereo Input
Line Input: Unbalanced
Band Width: 10Hz~55KHz+/-3db
Distortion (THD & N): 0.01% at +4dbu, 1KHz, Band Width 80KHz
Equalization
HI Shelving: 12KHz +/-15db
MID Range: 2.5KHz +/-15db
LO Shelving: 80HZ +/-15db
Master Mix Section
Max Output: +22 dbu balanced
AUX Send Max Out: +22 dbu unbalanced
Control Room Out: +22 dbu unbalanced
Signal/Noise Ratio: +22 db, all Channels at Unity Gain
Power Supply
Mains Voltages: AC100~120V/200~240V 50/60Hz
|
|
|
