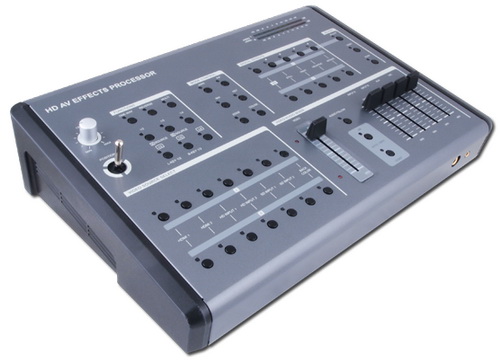

DIGITAL VIDEO MIXER HD/SD
This high definition HD/SD digital AV Mixer supports 6 inputs
(2 x HDMI, 2 x Component, 2 x S-Video and Composite video) and also Background Color for special efficiency.
The output supports 1 x HDMI, 2 x Component, 2 x S-Video and Composite video with position adjustment and recording.
The output supports HD/SD resolutions such as NTSC, NTSC-4.43, PAL, PAL-M, PAN-N, SECAM, 480p, 576p, 720p 50/60, 1080i 50/60.
Specifications:

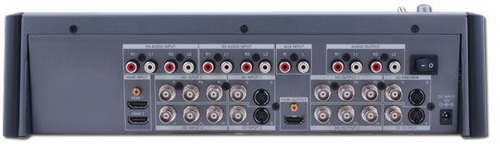

Video inputs:
2x HDMI [2x HDMI Uncompressed AV and Data]
6x BNC [2x YCbCr Component / YPbPr Component]
2x BNC [2x Composite]
2x S-video plug [2x S-video]
Video outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
6x BNC [2x YCbCr Component / YPbPr Component]
2x BNC [2x Composite]
2x S-video plug [2x S-video]
Audio inputs:
4x RCA [2x HD Audio Inputs Stereo (L/R)]
4x RCA [2x SD Audio Inputs Stereo (L/R)]
2x RCA [1x Aux Audio Input Stereo (L/R)]
1x Jack [1x Microphone]
Audio outputs:
4x RCA [2x Analogue Stereo (L/R)]
1x Stereo mini-jack [1x Headphone]
Selective size and position for digital effects area and PIP windows.
Digital effects- Still, Mosaic, Paint, Negative.
96 wipe patterns.
Chroma key & Luminance key.
High Picture Quality.
3x8 back color.
Joystick control for digital effect position.
Fade control for Video and Audio.
Automatic fade and wipe with speed preset control.
Extra Microphone input and Headphone output.
Picture in Picture control (3 window sizes).
Each A/B BUS can adjust the Contrast / Brightness / Color / HUE / Detail & Aspect Ration.
Supports Lip-Sync delay up to 170ms.
Composite supports 3D comb filter and YC separation.
Motion and Edge Adaptive De-interlacing.
Video and Audio mixing.
Note: When receiving content that has HDCP encryption there will be no video output except for HDMI output port.
Power: 12V/3A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 250mm (W) x 370mm (D) x 90mm (H)
Gross Weight: 3680g
Net. Weight: 2560g
User Manual
Digital Video Mixer Operation Manual (PDF 3,5MB).
|
|
|
